SFO- 600

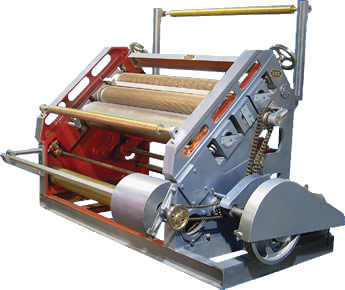

OBLIQUE TYPE
SINGLE FACE PAPER CORRUGATION MACHINE
The
Oblique model has considerable increase in efficiency and production over the
vertical model. The rollers are bush mounted. One Pre-heater apart from the
three regular heaters is provided to demoisturise the liner. The machine is
equipped with twin shaft motorised self loading reel stand. The variable speed
motor is recommended for better quality and economy in wastage at an additional
cost. 'JUMBO' Type Motorised reel stand with capacity of lifting upto 1 ton
reel can be provided at an additional cost
|
Technical Specifications: |
| Machine Size |
45"
(114cm) |
52"
(132cm) |
56"
(142cm) |
62"
(157cm) |
| Motor Required (H.P) |
5 & 2 |
7.5 & 3 |
7.5 & 3 |
7.5 & 3 |
| Heating Load (KW) |
28 |
36 |
36 |
45 |
| Floor Space |
98"x170"
(249x432cm) |
104"x180"
(264x457cm) |
108"x184"
(275x468cm) |
115"x190"
(292x483cm) |
| Machine Height |
72"
(182cm) |
72"
(182cm) |
72"
(182cm) |
72"
(182cm) |
| Gross Weight (Kgs) |
3200 |
3800 |
4000 |
4200 |
| Production Capacity (RF /PM) |
90 |
90 |
90 |
90 |
|
