FEATURED PRODUCTS
1. OBLIQUE TYPE HIGH SPEED SINGLE FACE
2. VERTICAL TYPE SINGLE FACE
3. ROTARY REEL TO SHEET CUTTING
4. SHEET PASTING (GLUING MACHINE)
5. PLATEN DIE CUTTING MACHINE
6. SHEET FED FLEXOGRAPHIC PRINTING MACHINE.








Product Range



FHS-900

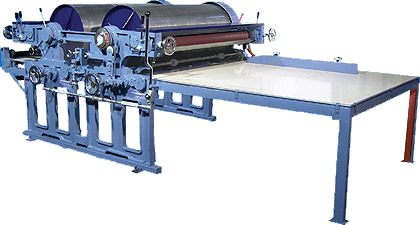

DOUBLE COLOUR SHEET FED FLEXOGRAPHIC PRINTING MACHINE

The machine offers high rate of production and enhanced efficiency. It prints paper, board & corrugated sheets with either water based ink or solvent based ink. Hard Chromium Plated impression roller is provided for sharp impression, quality printing & long life. Variable speed controller with D.C. motor & Electronic Digital Sensor Counter with Panel Box is provided for economy in wastage and better quality. This machine is also available in Single Colour as Model No. FHS-600.



Technical Specifications:
Machine Size 46"x72" 52"x72" 52"x82" 62"x88"
Printing Area 44"x70" 50"x70" 50"x80" 60"x86"
Motor Required (H.P) 2 2 3 3
Floor Space 160"x74" 160"x80" 170"x80" 176"x90"
Machine Height 56" 56" 60" 62"
Gross Weight (Kgs) 1800 2000 2400 2800
Production Capacity/Hr. 1200 1200 1200 1200
