SFV-600

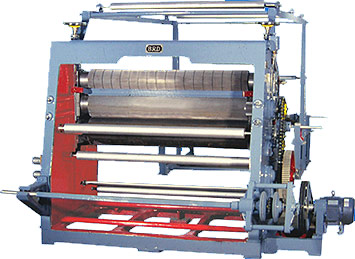

VERTICAL TYPE SINGLE FACE PAPER CORRUGATION MACHINE
The Vertical Model is sturdy in construction
and simple to operate. The rollers are bush mounted Electric heaters are
provided for appropriate conversion of paper to 2 ply corrugated sheets. The
machine is provided with manually operated twin shaft reel stand. The variable
speed motor is recommended for better quality & economy in wastage at an
additional cost. Normal motorised reel stand or 'JUMBO' Type Motorised reel
stand can be provided at an additional cost.
|
Technical Specifications: |
| Machine Size |
32" |
42" |
45" |
52" |
56" |
62" |
| Motor Required (H.P) (Manual Reel Stand) |
3 |
3 |
5 |
5 |
7.5 |
7.5 |
| Motor Required (H.P) (Motorised Reel Stand) |
3 & 2 |
3 & 2 |
5 & 2 |
5 & 2 |
7.5 & 2 |
7.5 & 3 |
| Heating Load (KW) |
15 |
21 |
21 |
27 |
27 |
36 |
| Floor Space |
80"x165" |
90"x175" |
95"x180" |
101"x185" |
105"x190" |
120"x195" |
| Machine Height |
70" |
70" |
70" |
80" |
80" |
80" |
| Gross Weight (Kgs) (Manual Reel Stand) |
2200 |
2500 |
2700 |
3000 |
3200 |
3500 |
| Gross Weight (Kgs) (Motorised Reel Stand) |
2800 |
3000 |
3200 |
3800 |
4000 |
4200 |
| Production Capacity (RF /PM) |
70 |
70 |
70 |
70 |
70 |
70 |
|
