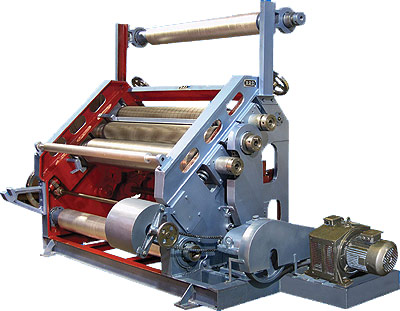

SFH-600
OBLIQUE TYPE HIGH SPEED SINGLE FACE PAPER CORRUGATION
MACHINE
The Machine offers high rate of production and
enhanced efficiency. The flute rollers are mounted on bearings for smooth
running & imparts proper impression on paper . Two Pre-heaters are provided for demoisturising the paper. Motorised reel stand is provided Variable speed motor
is provided as standard with this model. 'JUMBO' Type Motorised reel stand with
capacity of lifting upto 1 ton reel can be provided at an additional cost.
|
Technical Specifications: |
| Machine Size |
52"
(132 cm) |
56"
( 142 cm) |
62"
(157cm) |
72"
(183cm) |
| Motor Required (H.P) |
7.5 & 3 |
7.5 & 3 |
7.5 & 3 |
10 & 5 |
| Heating Load (KW) |
45 |
45 |
45 |
60 |
| Floor Space |
104"x180"
(264x457 cm) |
108"x184"
(275x468 cm) |
115"x180"
(292x457 cm) |
126"x180"
(320x457 cm) |
| Machine Height |
72"
(182cm) |
72"
(182cm) |
72"
(182cm) |
72"
(182cm) |
| Gross Weight (Kgs) |
4000 |
4200 |
4400 |
4600 |
| Production Capacity (RF /PM) |
110 |
110 |
110 |
110 |
|
