SFH-900

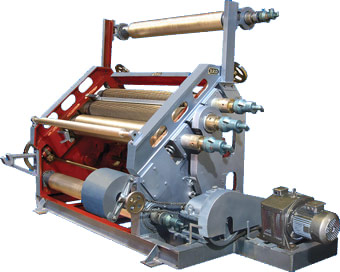

OBLIQUE TYPE HIGH SPEED SINGLE FACE PAPER
CORRUGATION MACHINE
This is an
exclusively high precision and robust type machine The flute rollers are mounted
on bearings for smooth running & longer life. The flute rollers are made of
special alloy steel. The main bearings are lubricated with high temperature
grease The gum rollers are hard chromed for better performance & life. Two
Pre-heaters are provided to demoisturise the paper. The machine is equipped with
‘JUMBO' type motorised reel stand with capacity of lifting upto 1 ton reel
Variable drive motor is standard with this model. The machine is heated by
thermic fluid or steam boiler 'JUMBO' type Motorised Hydraulic reel stand can
be provided at an additional cost.
|
Technical Specifications: |
| Machine Size |
52"
( 132cm) |
56"
(142cm) |
62"
(157cm) |
72"
(183cm) |
| Motor Required (H.P) |
7.5 & 3 |
7.5 & 3 |
7.5 & 3 |
10 & 5 |
Boiler Capacity
Thermic Fluid (Kcal/Hr) |
1 Lac |
1 Lac |
1.5 Lac |
1.5 Lac |
Boiler Capacity
Steam ( Kgs) |
300 |
300 |
300 |
400 |
Steam Pressure
(Kg / Cu. Mtr.) |
10-12 |
10-12 |
10-12 |
12-14 |
| Floor Space |
104"x180"
(264x457cm) |
108"x184"
( 275x468 cm) |
115"x190"
( 292x 486 cm) |
126"x200"
( 320x508 cm) |
| Machine Height |
72"
( 182 cm) |
72"
( 182 cm) |
72"
( 182 cm) |
72"
( 182 cm) |
| Gross Weight (Kgs) |
4200 |
4400 |
4600 |
4800 |
| Production Capacity (RF /PM) |
150 |
150 |
150 |
150 |
