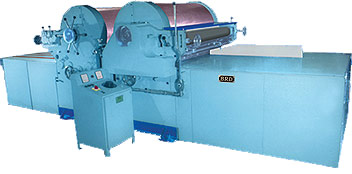

FHD-900
DOUBLE COLOUR
SHEET FED FLEXOGRAPHIC PRINTING MACHINE
The machine
is used for two colour printing on paper, board & corrugated
sheets. It can print with either water based ink or solvent
based ink. Hard Chromium Plated impression roller is provided
for sharp impression for quality printing. Variable speed
controller with D.C. motor & Electronic Digital Sensor Counter
with Panel Box is provided for economy in wastage & better
quality.
|
Technical Specifications: |
| Machine Size |
52"x88" |
62"x88" |
|
Printing Area |
50"x85" |
60"x85" |
| Motor Required (H.P) |
3 |
3 |
| Floor
Space |
204"x82" |
204"x92" |
| Machine Height |
62" |
62" |
| Gross Weight (Kgs) |
2600 |
2800 |
|
Production Capacity/Hr. |
1200 |
1200 |
|
