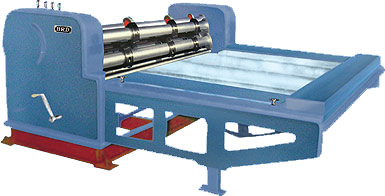

COMBINED ROTARY CREASER SLOTTER MACHINE

The machine is used for trimming, creasing, slotting and corner cutting of sheets simultaneously.  It has four creasing heads, four trimming heads, three slotting heads and one corner cutting head.  Chain feeding arrangement is provided with two side gauges to feed the board.  The creaser & slotter heads are easily adjustable to the required size.



Technical Specifications:
Machine Size 50"x72" 60"x84" 70"x95"
Motor Required (H.P) 3 5 7.5
Floor Space 120"x132" 132"x144" 144"x168"
Sheet Size Fed (Min/ Max) 14"x24"/50"x72" 15"x24"/60"x84" 20"x32"/70"x95"
Gross Weight (Kgs) 2800 3000 3200
Production Capacity / Min. 30 30 30
Slot Depth (MAX) 12" 14" 16"
