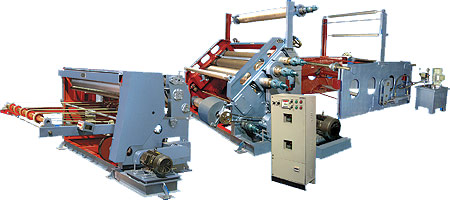

OBLIQUE TYPE
HIGH SPEED SINGLE FACE PAPER CORUGATION MACHINE WITH ROTARY SHEET CUTTER MACHINEThe machine
is an exclusively high precision robust Oblique type single facer attached with
auto sheet cutter and it gives ready cut 2 ply board in one complete operation.
The machine offers enhanced efficiency & high rate of production. The flute
rollers of the single facer are mounted on bearings for smooth running & long
life. The flutes are made of special alloy steel and the gum rolls are hard
chromed for better performance. Two Pre-heaters are provided to demoisturise the
paper. The single facer corrugation output is 150 ft/ min. The main bearings are
lubricated with high temperature grease. 'JUMBO' type motorized hydraulic reel
stand is provided. A.C. drive controller with master control for synchronizing
the speed of corrugation & sheet cutter is provided with this type of machine.
The attached sheet cutter can cut 2 ply board minimum 20 inches & maximum 80
inches damaging the flutes. The machine can be heated by Thermic Fluid as well
as steam boiler.
 |
|
