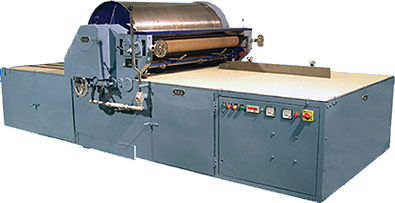

FHD-600
SINGLE COLOUR
SHEET FED FLEXOGRAPHIC PRINTING MACHINE
The machine
is specially designed for higher production & sharp printing
on paper, board & corrugated sheets. It can print with either
water based ink or solvent based ink. Hard chromium plated
impression roller is provided for sharp impression and quality
printing. Variable speed controller with DC motor &
Electronic Digital Sensor Counter with Panel Box is provided
for economy in wastage and better quality.
|
Technical Specifications: |
| Machine Size |
52"x88" |
62"x88" |
|
Printing Area |
50"x85" |
60"x85" |
|
Production Capacity (P/Hr.) |
1200 |
1200 |
| Motor Required (H.P) |
2 H.P. |
2 H.P. |
| Machine Height |
62" |
62" |
| Gross
Weight |
1800
Kgs. |
2200
Kgs. |
| Floor
Space |
162"x82" |
162"x92" |
|
